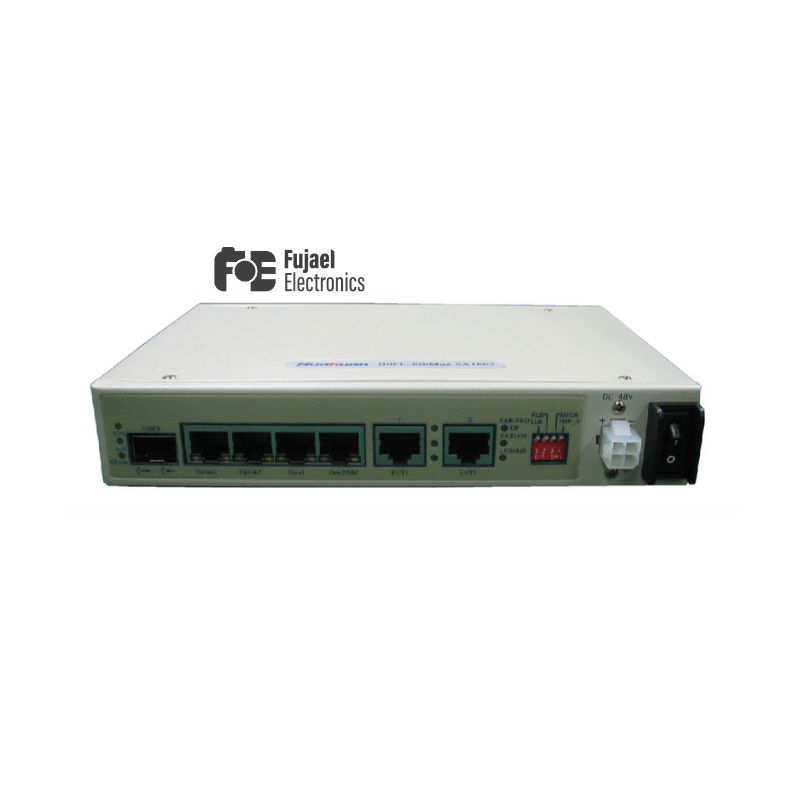

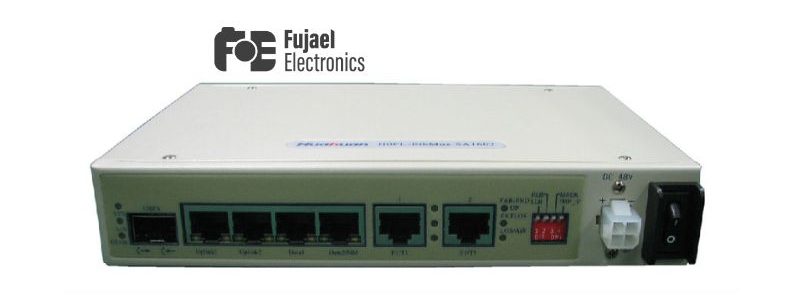

Huahuan H0FL-EthMux SA1602 E1/T1 over Ethernet Multiplexer

Huahuan H0FL-EthMux SA1602 | Reliable 2-Port E1/T1 over Ethernet Multiplexer

The Huahuan H0FL-EthMux SA1602 E1/T1 over Ethernet Multiplexer is a professional TDM-over-IP access device designed to transport two E1/T1 circuits over Ethernet or IP networks. It allows telecom operators, enterprises, PBX systems, mobile-network sites and infrastructure providers to continue using existing E1/T1 services while migrating their transport network to modern Ethernet technology.

Instead of installing dedicated E1 transmission infrastructure between two locations, the SA1602 encapsulates the incoming E1/T1 data into Ethernet packets, transports them through the packet network and reconstructs the original TDM data stream at the remote. With 2 E1/T1 interfaces, four 100Base-TX electrical Ethernet ports, one 100Base-FX optical interface, SAToP support, VLAN/QoS functions, accurate clock recovery and remote network management, the SA1602 provides a practical solution for legacy telecom-service migration.

For telecom companies, enterprises, ISPs and infrastructure projects in Bangladesh requiring dependable E1 over Ethernet or T1 over Ethernet connectivity, the Huahuan SA1602 provides a cost-effective bridge between traditional TDM equipment and modern IP networks.

Key Specifications

2 E1/T1 Channels over Ethernet

The main purpose of the Huahuan SA1602 is to transport two independent E1/T1 services over an Ethernet connection. Traditional telecom equipment such as PBX systems, PCM devices, BTS equipment and legacy transmission systems often depend on dedicated E1/T1 interfaces. Replacing all of that equipment simply because the transport network has moved to Ethernet can be expensive.

The SA1602 provides an alternative by converting the E1/T1 streams into Ethernet packets for transport through an existing packet network. At the destination, another compatible EthMux device reconstructs the original E1/T1 data stream. This allows organizations to continue using existing TDM equipment while benefiting from modern Ethernet infrastructure.

SAToP TDM over IP Technology

The H0FL-EthMux SA1602 supports SAToP — Structure-Agnostic TDM over Packet technology. SAToP enables traditional constant-bit-rate TDM signals to be carried transparently over packet-switched networks. The SA1602 encapsulates the E1/T1 stream into Ethernet/IP packets before transmission. At the receiving side, the device extracts the TDM information and reconstructs the original signal. This makes the SA1602 suitable for transporting legacy telecom services across:

Ethernet Networks · IP Networks · Metro Ethernet · Fiber Networks · Wireless Bridges · Enterprise Networks · Private Telecom Networks

4× Fast Ethernet Electrical Ports

The SA1602 includes four 100Base-TX electrical Ethernet interfaces. These interfaces are designed for both uplink and local-data applications. The standard configuration provides:

2 Uplink Ethernet Ports + 2 Local Data Ports

One of the local-data ports can also be used for monitoring and management. The electrical Ethernet ports support:

Auto Negotiation · 10Mbps / 100Mbps · Half Duplex · Full Duplex

This provides flexible integration with existing Ethernet switches, routers and network infrastructure.

100Base-FX Fiber Ethernet Interface

In addition to the copper Ethernet interfaces, the SA1602 includes a 100Base-FX optical Ethernet port. The optical interface uses an LC connector and operates at 100Mbps full duplex. This allows the multiplexer to connect directly to compatible fiber Ethernet networks where longer transmission distance, electrical isolation or fiber infrastructure is required. Depending on the deployment, the optical port can be used for uplink or local-data connectivity.

1+1 Ethernet Uplink Protection

Network availability is particularly important when transporting telecom traffic. The SA1602’s two electrical uplink Ethernet ports support 1+1 hitless protection. This helps provide additional resilience when redundant Ethernet paths are available. For applications such as telecom infrastructure, utility networks and enterprise communication systems, redundant connectivity can significantly reduce the risk of service interruption caused by a single uplink failure.

VLAN, QinQ and QoS Support

The SA1602 includes a built-in Layer 2 Ethernet switch with support for advanced traffic-management functions. Supported technologies include:

IEEE 802.1Q VLAN

Allows network administrators to logically separate traffic across the same physical Ethernet infrastructure.

IEEE 802.1ad QinQ

Supports VLAN stacking, which can be particularly useful in carrier and service-provider networks.

QoS

The system supports traffic prioritization based on port, IEEE 802.1P and TOS parameters. Because E1/T1 traffic is highly sensitive to packet delay and jitter, QoS helps prioritize TDM traffic over less time-sensitive local Ethernet data.

Accurate E1/T1 Clock Recovery

Clock synchronization is one of the most important challenges when transporting TDM traffic through packet networks. Unlike conventional E1 transmission, Ethernet networks do not inherently provide the same continuous timing characteristics. The SA1602 incorporates timing-recovery technology to reconstruct the original E1/T1 clock at the receiving side. The device supports multiple timing modes, including:

Local Clock · Adaptive Timing · Loopback Timing

Under stable adaptive-timing conditions, Huahuan specifies output frequency stability of ≤5ppm and output jitter of ≤0.1UI. This makes the device suitable for many timing-sensitive telecom applications.

Packet Delay Variation Protection

Ethernet and IP networks can introduce variations in packet arrival times. This phenomenon is commonly known as Packet Delay Variation or PDV. The H0FL-EthMux SA1602 includes buffering technology designed to absorb packet-delay variation before reconstructing the outgoing E1/T1 signal. The system is also designed to resist packet loss and protect frame synchronization, helping maintain stable legacy services over packet-based networks.

Low Processing Delay

For real-time telecom applications, excessive network latency can affect service quality. The SA1602 provides a specified additional one-way processing delay of:

≤10ms

When configured for minimum processing delay in point-to-point applications. This helps make the unit suitable for latency-sensitive voice, PBX, mobile backhaul and telecom-service applications.

Web-Based Network Management

The Huahuan SA1602 supports Web Server-based network management, enabling administrators to monitor and configure the device remotely through a browser. Available monitoring and management functions include areas such as:

E1 Channel Status · Ethernet Port Status · Alarm Monitoring · VLAN Configuration · Ethernet Management · E1 Management · System Configuration

This makes administration easier compared with unmanaged protocol converters.

SNMP V2 Management

For larger network deployments, the SA1602 also supports SNMP V2.

SNMP support allows the device to integrate into centralized network-monitoring and management environments.

This is useful for:

Telecom Operators · ISPs · Enterprise Networks · Utility Networks · Government Infrastructure · Managed Communication Networks

The device also supports remote software and hardware upgrades along with network-time configuration through SNTP.

Flexible E1/T1 Interface Options

The SA1602 supports standard balanced telecom interfaces:

E1 — 120Ω

T1 — 100Ω

A 75Ω unbalanced E1 configuration can also be implemented using the appropriate DIP settings and connection cable.

This flexibility makes the unit compatible with a wider range of legacy telecom equipment and regional installation standards.

AC and DC Power Options

The H0FL-EthMux SA1602 is available with different power configurations suitable for telecom and enterprise installations.

Supported options include:

AC: 100–240V, 50/60Hz

DC: -36V to -72V

Maximum power consumption is specified at approximately 7.7W or less, making the device suitable for continuously operated network installations.

Compact Design for Telecom Installations

The SA1602 measures approximately:

195 × 35 × 140mm

Its compact chassis makes it suitable for desktop, telecom cabinet and equipment-room installations where space may be limited. Despite its small size, the unit combines E1/T1 conversion, Ethernet switching, fiber connectivity, QoS, VLAN, redundancy and network-management capabilities in one device.

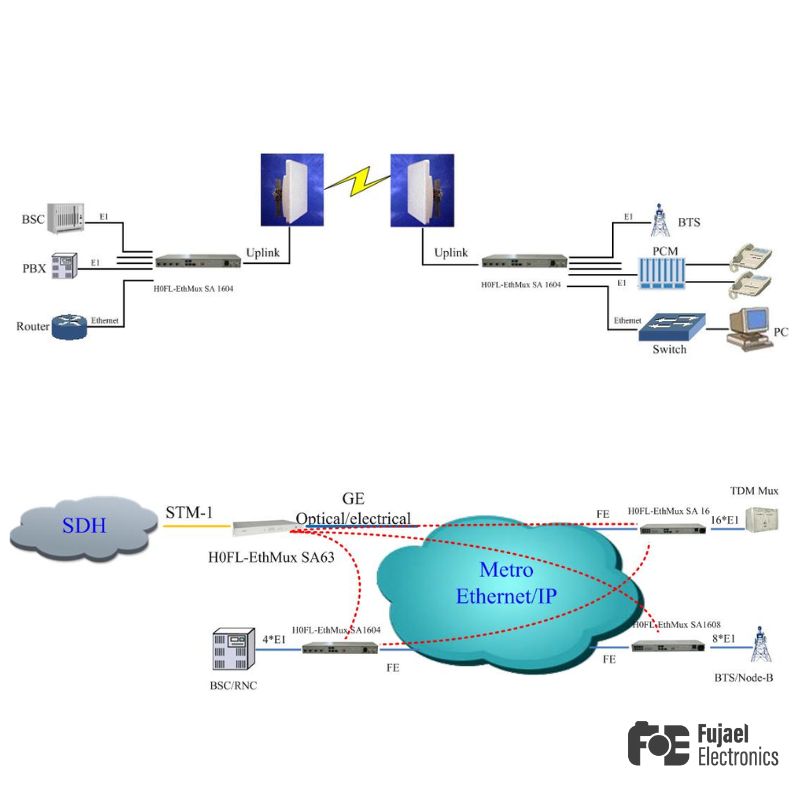

Typical Applications of Huahuan SA1602

The H0FL-EthMux SA1602 can be used in a variety of telecom and enterprise applications.

• PBX Interconnection: Organizations operating legacy PBX systems can transport E1/T1 voice trunks between locations through an Ethernet or IP network.
• BTS and Mobile Network Connectivity: The converter can be used with BTS and other cellular-network equipment that requires E1/T1 transport.
• PCM Equipment Interconnection: Legacy PCM systems can be connected across modern packet networks without replacing the existing TDM hardware.
• Wireless E1/T1 Transmission: The SA1602 can work with compatible wireless Ethernet bridges to transport E1/T1 services where dedicated fiber or copper transmission facilities are unavailable.
• Fiber Ethernet Transport: The integrated 100Base-FX optical port enables direct connection to compatible fiber Ethernet infrastructure.
• Enterprise Private Networks: Organizations can extend existing E1/T1-based systems between offices, facilities, factories or remote locations using their Ethernet infrastructure.
• Telecom Network Migration: Service providers migrating from traditional TDM networks to packet-based networks can continue supporting legacy customer services during the transition.

Why Choose the Huahuan H0FL-EthMux SA1602?

The SA1602 combines several important telecom functions within one compact device:

2× E1/T1 + 4× 100Base-TX + 1× 100Base-FX + SAToP + VLAN + QinQ + QoS + 1+1 Uplink Protection + Accurate Timing Recovery + Web Management + SNMP V2.

Instead of maintaining separate dedicated E1 transport links, organizations can use existing Ethernet infrastructure while continuing to operate legacy TDM equipment. This can reduce infrastructure complexity and provide a practical migration path from traditional telecommunications networks to packet-based transport.

Huahuan H0FL-EthMux SA1602 Price in Bangladesh

The Huahuan H0FL-EthMux SA1602 price in Bangladesh can vary depending on stock availability, AC or DC power configuration, E1/T1 interface requirements, optical-interface configuration and project quantity. For the latest Huahuan H0FL-EthMux SA1602 price, availability and technical purchasing information, contact or check the updated product listing at Fujael Electronics.

Customers purchasing the SA1602 for telecom or enterprise projects should confirm their required E1/T1 impedance, AC/DC power option, fiber interface requirements and network topology before ordering. For organizations looking for an E1 over Ethernet converter, T1 over Ethernet converter or TDM over IP multiplexer in Bangladesh, the Huahuan SA1602 provides a professional solution for transporting legacy telecom services over modern Ethernet networks.
